Tone Tile™  White Paintable Acoustical Panels

|

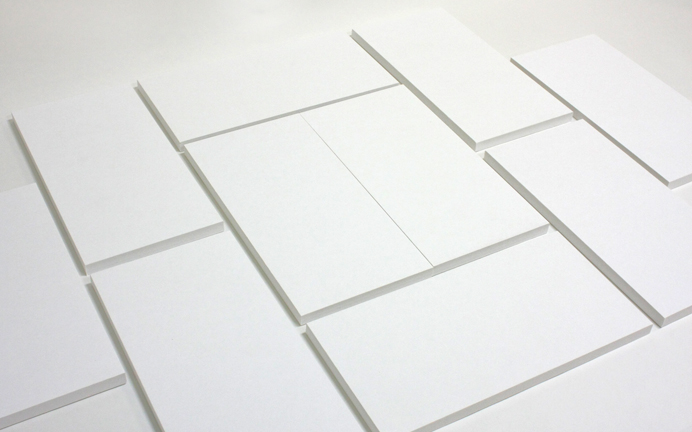

The Acoustics First Tone Tile™ is a white acoustical wall panel with a soft textured appearance. Their easily managable sizes provide installers the flexibility to mount acoustical panels around existing objects. In addition to reducing echo and reverberation, these acoustical panels are used to create unique designs and patterns. The glass fiber core is faced with a paintable covering.  This allows you to match or complement existing wall colors by applying a light coat of flat or matte spray paint. To customize the look even further, many local printing companies now have the capability to produce an image directly to the face of these panels.

∞ Available from Stock
∞ Quick & Easy acoustical solution
∞ Soft drywall texture appearance
∞ Create unique patterns
∞ Panel size allows for flexible mounting options
∞ Paintable & Printable finish

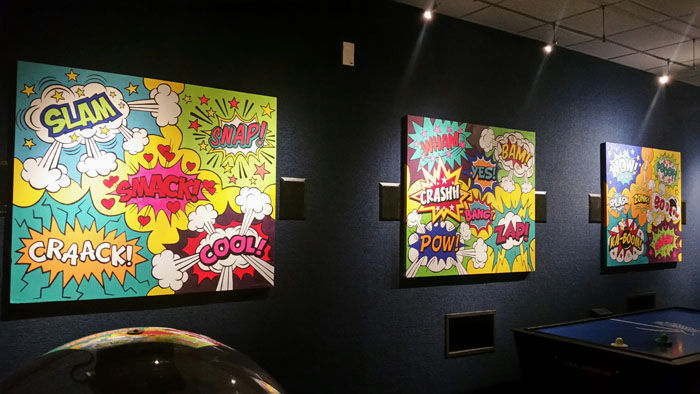

∞ Print images on panel face at your local printer
∞ Make it an art project and stencil on your own images

Tone Tile Painting Guide (PDF)

Description Code Price / Box
Tone Tile™ Acoustical Panels, 2'x1', 10 pcs. AFTT1  $ 325.00
Tone Tile™ Acoustical Panels, 2'x3', 4 pcs. AFTT23  $ 325.00
Tone Tile™ Acoustical Panels,
CUSTOM up to 4'x10'
(Please provide quantities and sizes)
AFTTC  CALL

Please Contact Acoustics First for any quantity pricing or a quotation. Shipping is additional.

Construction
: 1 " Fiberglass 6 PCF acoustical core + molded fiberboard + paintable facing. Resin hardened square edges. Paintable finish covers face and exposed edges.

Class A rating per ASTM E 84

Panel Size:
AFTT1 : 2' x 1' (24 inches by 12 inches)
AFTT23: 2' X 3' (24 inches by 36 Inches)

Thickness: 1-1/8"

Quantity per box:
AFTT1: 10 Panels (20 sq. ft.)
AFTT23: 4 Panels (24 sq. ft)

NRC: 0.90



Ten 2'x1' Tone Tiles™per box
OR
Four 2'x3' Tone Tiles™per box

Price: $325.00 / box
Tone Tiles - Specs.pdf

Sustainability
This product bears the Green Cross label for recycled content.  The acoustical substrate is certified on average to contain at least 35% recycled glass, with 9% post-consumer and 26% pre-consumer content.

Mounting
Installs using standard impaling clip method. (adhesive by others) Other mounting options shown below.

For use in
Recording studios, Home Theaters, Offices, Broadcast Facilities, Telemedicine, Conference Rooms, Restaurants, Salons, Coffee Shops, Computer Gaming Systems or anywhere absorption is desired.

Sound Absorption Coefficients per ASTM C423 (D5 Mount)
Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
1-1/8" 0.07 0.51 0.96 1.09 1.07 .96 0.90

Alternative Optional Mounting Methods
(clips sold separately)


Mount in Corners using Corner Clips

Install Tone Tile™ acoustic panels in corners to create bass traps to improve low frequency absorption and prevent bass build up in corners.  Panels can be installed either 1' wide or 2' wide or in combinations. Picture to the right shows a 1' (w) corner trap behind a 2' (w) corner trap with 6" gap between the 2' traps. (clips sold separately)

Mount on Two Inch Stand off Clips

Using 2" Stand off Clips will increase the low frequency absorption by providing an air gap behind the panel.  This also generates visual interest.  Panels on stand off clips can be back lit to create lighting effects.  Additionally, these clips can help when installing panels on a curved surface. (clips sold separately)
