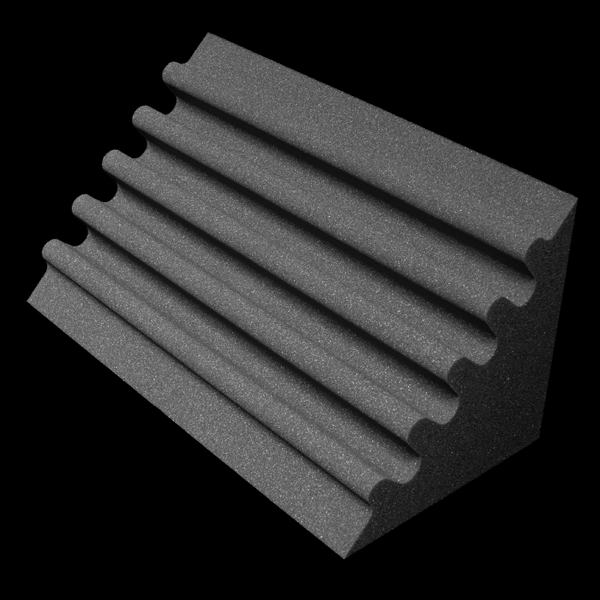

Bermuda Triangle Trap® Bass Trap / Corner Trap

|

The Bermuda Triangle Trap® is a broadband acoustical foam absorber designed to be mounted in room corners as a bass trap. It is especially useful to trap the bass that is more intense at the intersection of walls. The rolling pattern provides increased surface area for greater sound absorption. Sound enters the corner triangle trap and is never heard from again.

Corner connector cubes are available to mate Bermudas at ceiling and wall intersections.

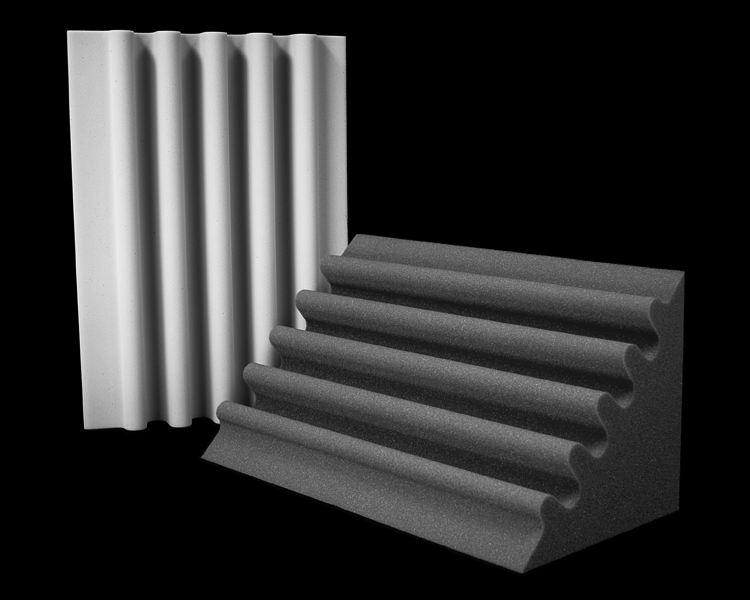

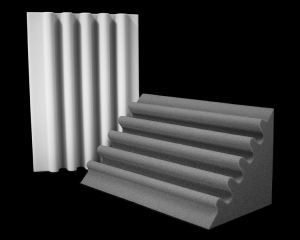

The Bermuda Triangle Trap® complements the surface pattern of the Sound Cylinder™.


Available Colors:
Note that colors will vary from representation below according to your monitor settings):

Charcoal Brown Beige Blue

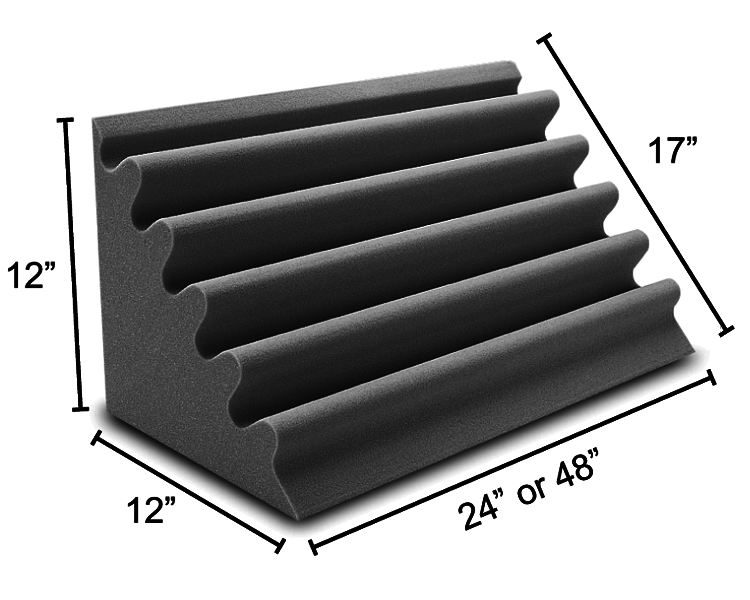

Sizes:
48" High or 24” High
12" Outer Edges - 17" Face
(See below)

Material:
Polyurethane Foam

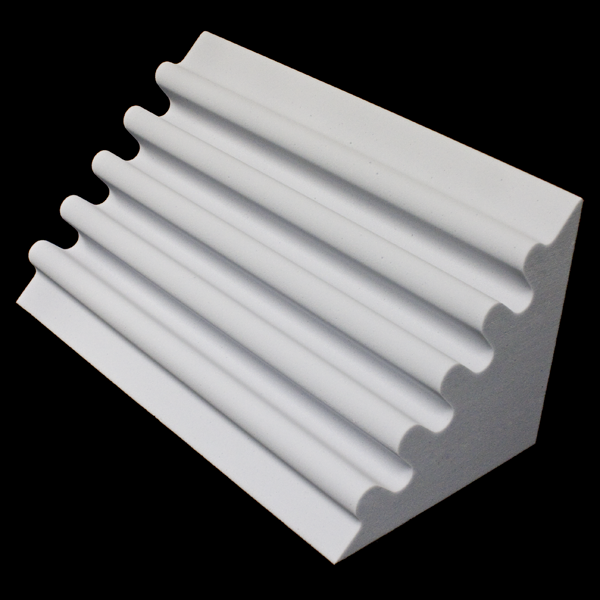

(Also available in Class 1 FireFlex™)




-Materials are also sold per piece.  Please request a quotation for your specific requirements. Minimums may apply.
(Charcoal is the default color unless otherwise specified.)

Please
Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.

Polyurethane Foam Class 1 FireFlex™
(
Contact Acoustics First for pricing)
(Size specifications)
Sound Absorption Coefficients - Sabins Per Unit
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz
20.0 26.4 26.7 28.5 35.7 49.3
Corner Connector Cube
