Cutting Wedge 2000® Acoustical Foam

|

CUTTING WEDGE 2000® installs to create seamless absorptive walls, and enhance imaging by reducing unwanted reflections.  The "2000" design enables you to increase thickness quickly by nesting layers instead of buying different and incompatible products. By adding 2 or 3 nested layers of CW2K, you can control energy hotspots in corners or in the path of first reflections quickly and efficiently. Cutting Wedge® makes creating virtual bass-traps in corners, using 3 or 4 nested layers of CW2K, simple and efficient.

  • Stackable to increase low frequency response

  • Prevent destructive specular reflections from distorting or coloring the sweet spot.

  • Eliminate room modes, comb filtering, standing waves and undesirable specular artifacts.

  • Attenuate sound pressure buildup at room boundaries (where walls meet walls).

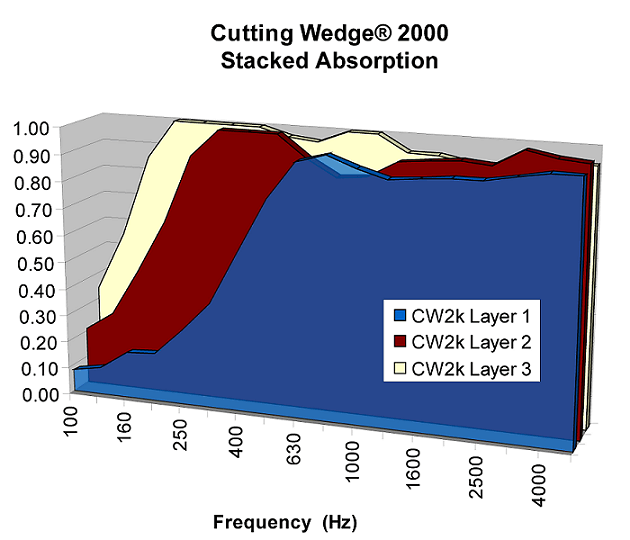

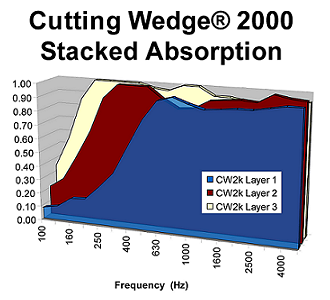

(Click on chart for larger view)

Cutting Wedge 2000® can be stacked in room corners:
3 Layers = 4¾
2 Layers = 3½
Air Gap behind 1st Layer

Cutting Wedge® Material Components:

  • Open Cell Polyurethane Foam

  • Density:  2 pound cubic foot

  • Flammability:  Meets UL94HF-1

  • Flame Spread = 95, Smoke Density = 340

  • Tensile Strength = 20 PSI

           Click photo for larger view:

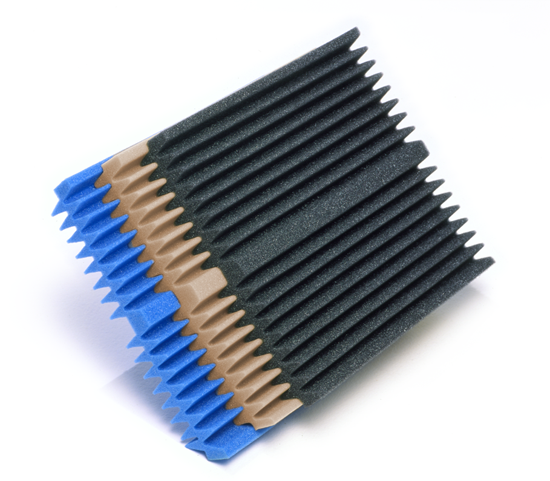

Cutting Wedge 2000 - 1'x1'
Cutting Wedge 2000® - 1'x1'

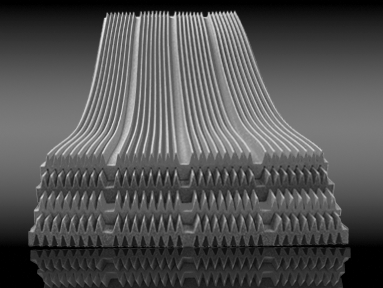

Cutting Wedge 2000 - 2'x4'
Cutting Wedge 2000® - 2'x4'

Cutting Wedge 2000 - 2'x4'

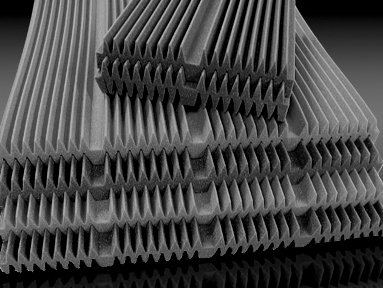

Cutting Wedge 2000® - Group

Available Sizes:
1'x1' and 2'x4' Sheets
at 2.25" Thicknesses.



Can be installed using a construction adhesive
that is approved for polyurethane foam.




-Materials are also sold per piece.  Please request a quotation for your specific requirements. Minimums may apply.
(Charcoal is the default color unless otherwise specified.)

Please
Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.



Sound Absorption Coefficients

Thickness 250 Hz 500 Hz 1000 Hz 2000 Hz NRC
2.25" 0.33 0.69 0.91 0.94 0.70

Available Colors: (Note that colors will vary from representation below according to your monitor settings):

Charcoal Brown Beige Blue
