Products » Absorbers » FireFlex Foam » FabTec


FabTec™  Flexible Fabric Faced Acoustical Foam

|


FabTec™ sound absorption panels are a combination of FireFlex Class 1 melamine acoustical foam faced with a non-woven fabric. These panels are very lightweight and weigh approximately two pounds per panel. They can be easily installed using a standard foam construction adhesive.



FabTec is versatile for use where field cuts are required. Panels can be trimmed using an electric carving knife.  FabTec can also be useful when a material is needed to apply to a curved surface.

The fabric-facing is Velcro® compatible and is durable enough to stand up to heavy use. This material resists rot, mold and mildew and will not fray or ravel.





Click photo for larger view:



Thickness

Sheet Size

PCS.

Product Code

Price

1" 2'x4' 12 AFAB124-PK12 $ 840.00
2" 2'x4' 6 AFAB224-PK6 $ 504.00
3" 2'x4' 4 AFAB324-PK4 $ 416.00
-Materials are also sold per piece.  Please request a quotation for your specific requirements. Minimums may apply.

Please specify color when ordering:
FabTec Color Chart

Please
Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.

     Technical Information



Available Sizes:
1", 2", or 3" Thickness
24" x 48" Panels

Fire Rating:
Class A

NRC
0.65 - 1.20

FabTec Color Chart


Fabric Surface Specifications:
  • Contents - solution dyed polyester staple fiber
  • Colorfastness to Crocking - (AATCC-8):
    Dry-excellent / Wet-excellent
  • Colorfastness to Light - (AATCC-16A):  1,000 hours
Flammability - Tunnel Test (ASTM E 84-91A)
  • Flame Spread - 10
  • Smoke Developed - 10
  • Passes corner burn - NFPA 265 UBC 8-2
  • (Formerly UBC 42-2) MEA #253-94-M

Sound Absorption Coefficients
Thickness 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
1" 0.19 0.32 0.85 0.88 0.58 0.50 0.65
2" 0.16 0.53 0.91 1.06 1.05 1.05 0.90
3" 0.49 1.03 1.27 1.18 1.03 0.72 1.13

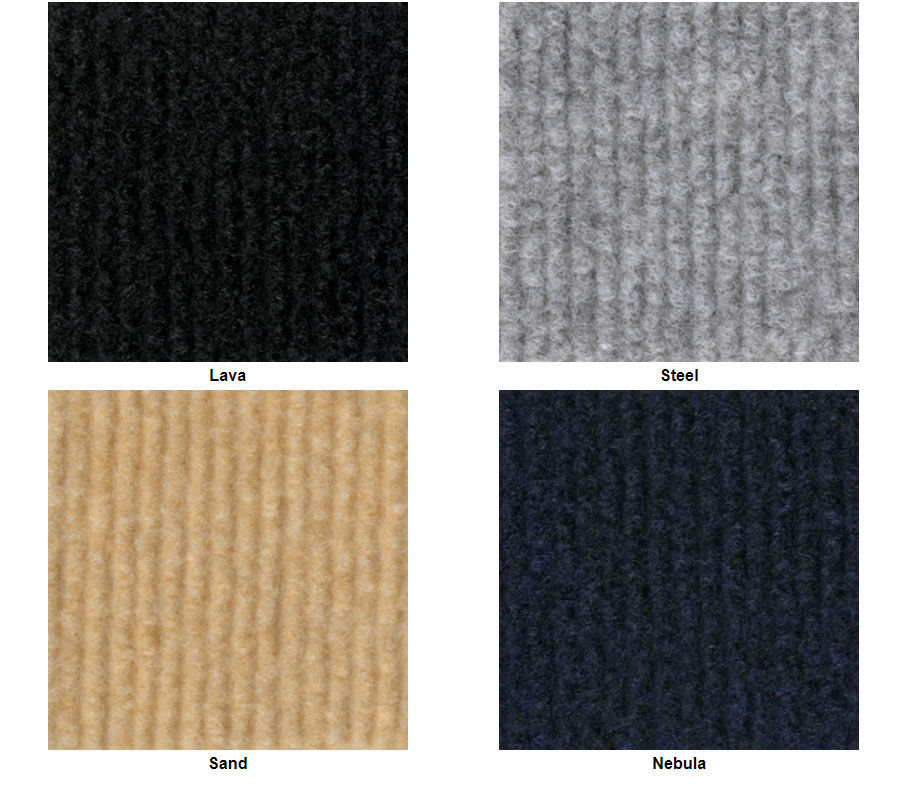

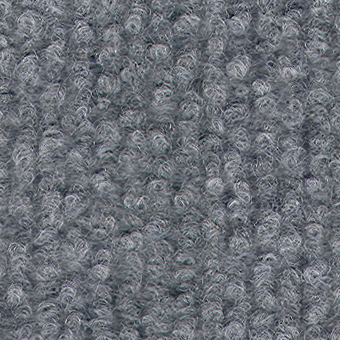

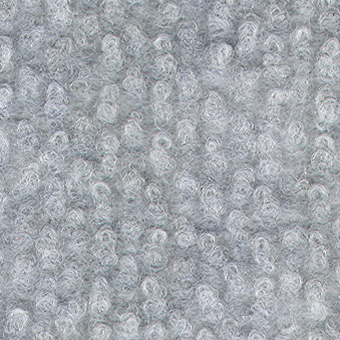

Available Colors (Note that colors will vary from below according to your monitor settings):

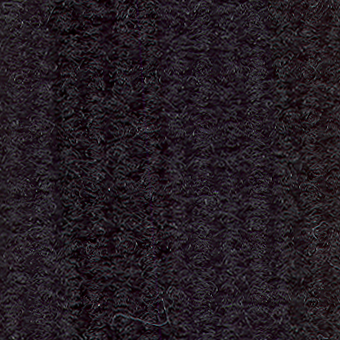

Lava Steel

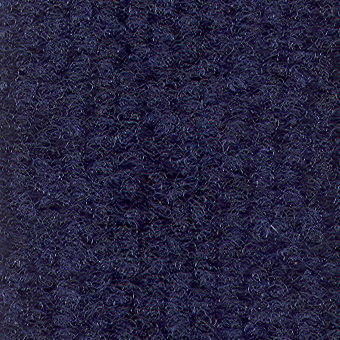

Sand Nebula
