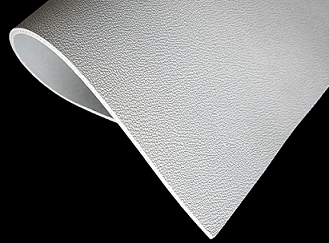

BlockAid® Reinforced Vinyl Sound Barrier

|


BlockAid® Reinforced Vinyl Sound Barrier is a mass loaded vinyl (MLV) material to use when sound blocking is needed and a more rugged and durable material is desired.  Reinforced barrier can support its own weight, allowing it to be used in hanging partitions.  Install BlockAid® Reinforced Barrier to prevent sound from flanking over walls in a ceiling grid plenum.

BlockAid® Reinforced Vinyl Sound Barrier is available in 60’ rolls or by the linear yard, and exhibits excellent resistance to most acids, mild alkalis, oils and grease.

Color: Metallic Grey
Width: 53" Wide
Size: 60' Rolls or by the linear yard
Thickness: 0.110” (110 mils)
Weight: 1 pound per square foot
STC: 27


Fire Rating:
Fire Resistant "SE" 0"
Passes:
MVSS032, UL-94 HB &
FED STD 5903

Breaking Strength: Warp: 160 lb./in.   Fill: 125 lb./in.  (Per Fed. Test Standard 191, 5902)
  Warp: 50 lb./in.     Fill 35 lb./in.  (Per Fed. Test Standard 191, 5136)
Temperature Limits: Service range of -40° to 180°F.  Short term exposure to 350°F.

Sound Transmission Loss (dB) Per Octave Band (Hz)
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz STC
15 19 21 28 33 37 27
