Cloudscape® Ceiling Baffles
(CSBF 1.5" PVC, CSBF2 2" PVC , CSBF2S Sailcloth, CSBF2F Fabric, CSBF2E Exterior)

|
Cloudscape® Baffles are an economical way to reduce sound pressure levels and lower reverberation times in large spaces such as gymnasiums, theaters, restaurants, health and fitness clubs, etc. Reverberation times can be lowered from a RT60 of 4 - 9 seconds down to a RT60 of 0.5 - 2 seconds. Speech intelligibility is greatly improved and sound intensity levels can be2011 Top Product by Christian School Products Magazine simultaneously reduced by 3 to 12 decibels.

These baffles are easily suspended from existing open truss and pre-engineered suspension systems. They are designed to hang in a vertical fashion, allowing free flow of air and integrate exceptionally well with existing sprinklers, lighting and HVAC systems.


Click for product information

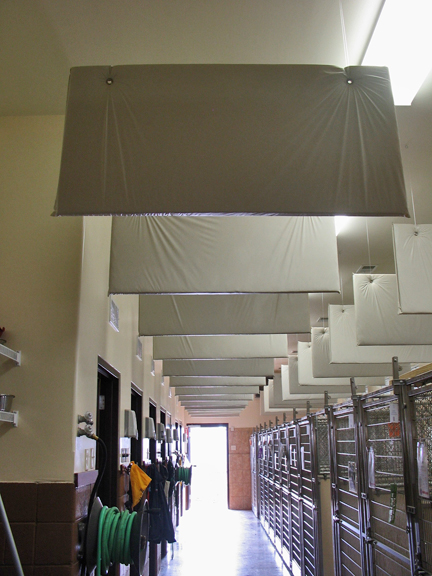

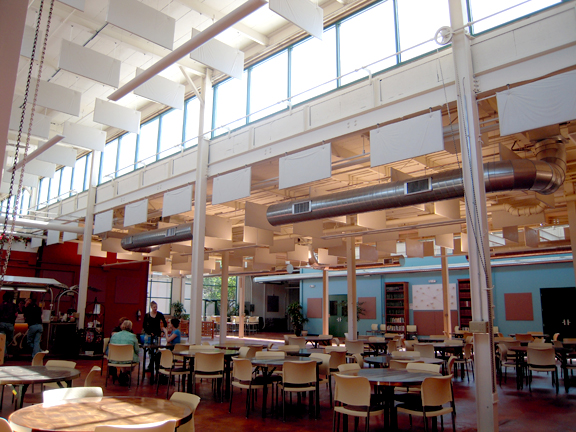

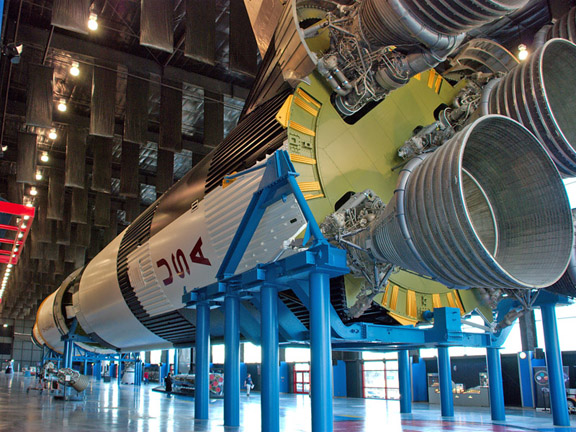

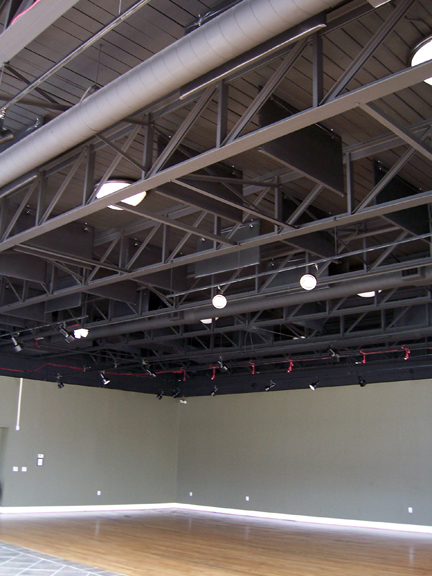

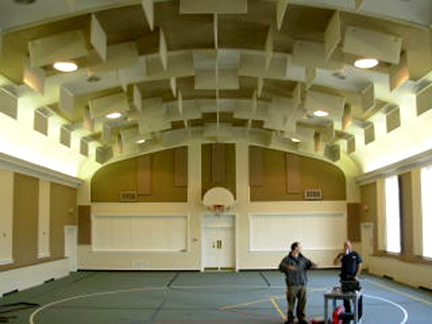

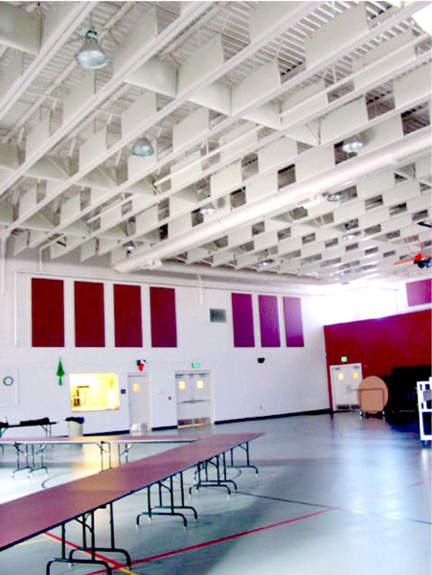

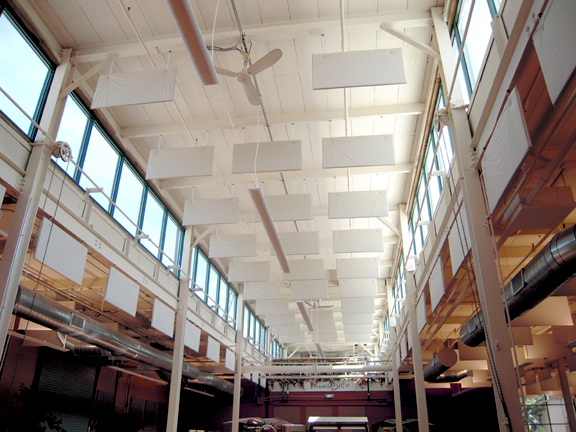

Encapsulated Baffle Photo Gallery

Cloudscape Ceiling Baffles  are designed to hang in a vertical fashion, allowing free flow of air.

Standard 1.5" PVC Encapsulated Baffle

Cloudscape® Hanging Ceiling Baffle
Product Code: CSBF
1.5" x 4'(w)x2'(h) (PVC)
Standard baffles

Request a Quote

Click For Price

Cloudscape Ceiling Baffles integrate exceptionally well with existing sprinklers, lighting and HVAC systems.

Color Chart
CSBF--Specifications
Installation Details

  Construction: 1.5" thick 1.5 PCF Fiberglass encapsulated by heat sealed 2.5 mil PVC film
Size: 4'x2' Only.  Supplied with two grommets per baffle. 9 Colors.



Sound Absorption: CSBF Type “J” Mounting (per 2’ x 4’ unit)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
0.30 0.45 1.02 1.31 0.94 0.52 0.96


Note that colors will vary from below according to your monitor settings.

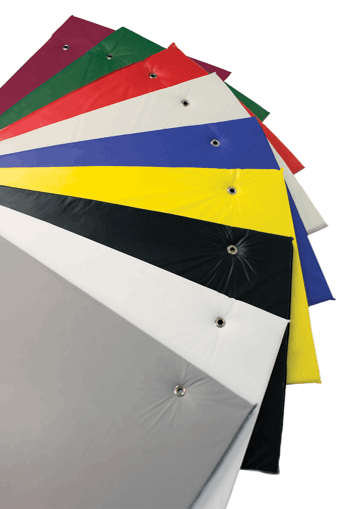

White Black Light Grey Beige Blue Green Yellow Red Burgundy

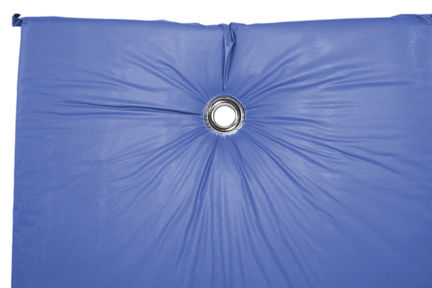

2" PVC Encapsulated Baffle

Cloudscape® Hanging Ceiling Baffle
Product Code: CSBF2
2", 1.65# (PVC)

Request a Quote

Color Chart
CSBF-2-Specifications
Installation Details

  Construction: 2" thick 1.65 PCF Ecose Fiberglass encapsulated by heat sealed 2.5 mil PVC film
Sizes up to 4'x10' with some limitations.  Grommets in Baffle. 9 Colors



Grommets on Width Edge



  Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.


Sound Absorption: CSBF2 Type “J” Mounting (per 4’ x 2’ unit)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
0.30 0.69 1.33 1.53 1.00 0.59 1.15

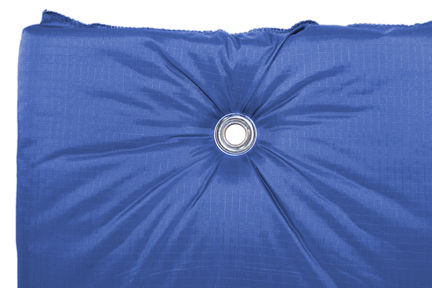

Durable Rip-Stop Nylon Baffle

Cloudscape® Hanging Ceiling Baffle
Product Code: CSBF2S
2", 1.65# (SAILCLOTH)
Durable Rip-Stop Nylon Baffle

Request a Quote

Color Chart
CSBF-2S-Specifications
Installation Details

  Construction: 2" thick 1.65 PCF Ecose Fiberglass encapsulated in sewn Nylon Sailcloth
Sizes up to 4'x10' with some limitations. Grommets in Baffle. (Grommet Flap Available) 9 Colors.



Grommets on Width Edge



  Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.


Sound Absorption: CSBF2S Type “J” Mounting (per 4’ x 2’ unit)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
0.29 0.68 1.35 1.70 1.68 1.60 1.35

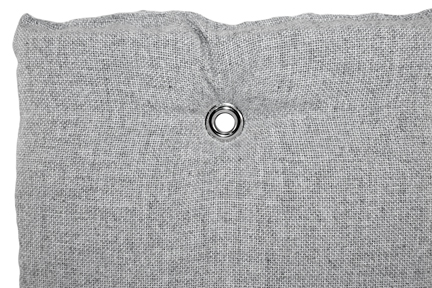

Fabric Encapsulated Baffle

Cloudscape® Hanging Ceiling Baffle
Product Code: CSBF2F
2", 1.65# (FABRIC)
Fabric Encapsulated Baffle

Request a Quote

Color Chart
CSBF-2F-Specifications
Installation Details

  Construction: 2" thick 1.65 PCF Ecose Fiberglass encapsulated in sewn Polyester Fabric
Sizes up to 4'x10' with some limitations. Grommets in Baffle. (Grommet Flap Available)



Grommets on Width Edge


  Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.


Sound Absorption: CSBF2F is equal or greater than CSBF2S

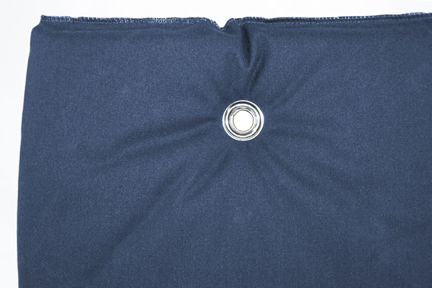

Exterior Baffle

Cloudscape® Hanging Ceiling Baffle Product Code: CSBF2E
2", 1.65# (EXTERIOR)
For Outdoor Use Only

Request a Quote

Color Chart
CSBF-2E-Specifications
Installation Details

  Construction: 2" thick 1.65 PCF Ecose Fiberglass encapsulated in sewn Exterior Grade Fabric
Sizes up to 4'x10' with some limitations. Grommets in Baffle (Stainless Steel) / Aluminum Stiffeners
Please Contact Acoustics First for pricing on CSBF2E



Sound Absorption: CSBF2E Type “J” Mounting (per 4’ x 2’ unit)

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
0.23 0.62 1.43 0.98 0.76 0.74 0.95
