Art Diffusor® Model D Sound Diffuser

Model D:  Organic Quadratic Diffuser (U.S. Patent Number D743,091)
Size:   23-5/8 x 23-5/8”
Depth:   4.1”          Weight: 4 pounds
Mount:    Direct mount (wall or ceiling) or
Drop intoT-Bar grid (15/16")
Material:   Class A Thermoplastic (White)
Bandwidth:   599 Hz to 16+ kHz (Ext. Phase)
Brochure:   Art Diffusors® Brochure (PDF)
Specs:   Art Diffusor® Model D ADDT Specifications (PDF)
(Need Acrobat Reader?  Click here)

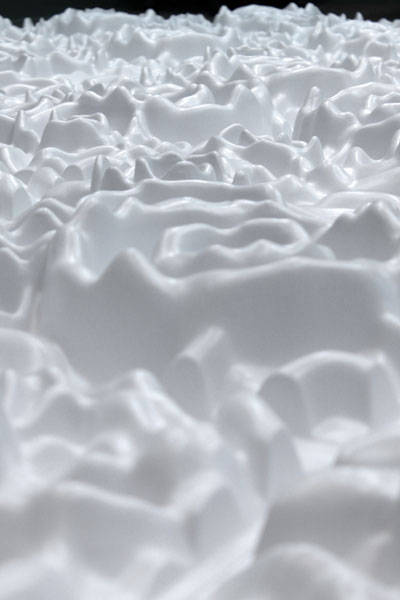

The Art Diffusor® Model D is an organic quadratic diffuser. This diffuser improves sound clarity and ambience while increasing the overall perceived space of the room. The range of the Art Diffusor® is extended over other designs by its unique organic curvature to further control specular reflections above 4 kHz.

The  animation to the right is intended to help visually demonstrate the process of sound diffusion from a single sound source. The Model D Art Diffusor deflects the sound hemispherically, a result of the bicubic concentric rings, and the various quadratic well depths.

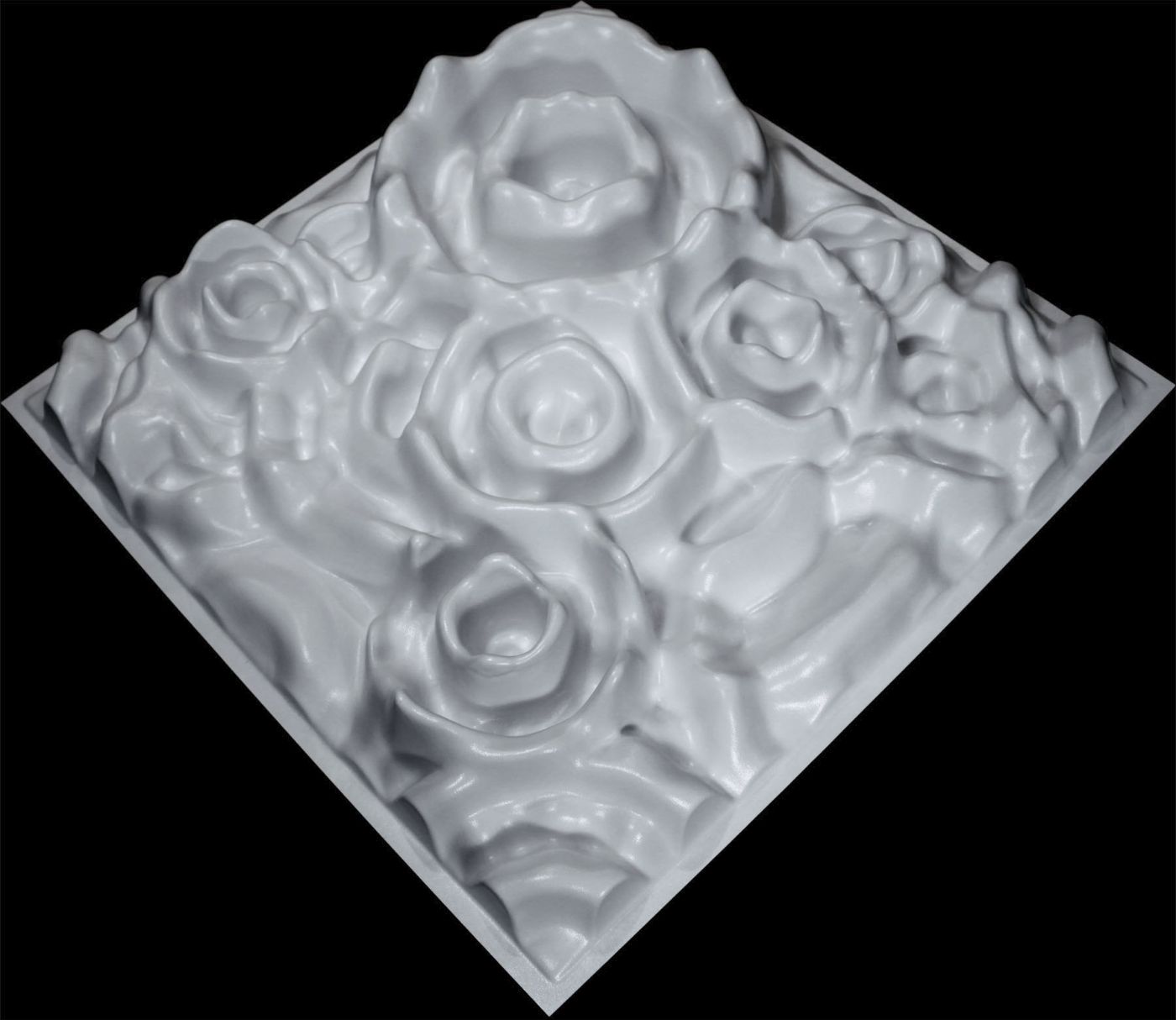

Art Diffusor Model D - Organic Quadratic diffuser.

Product Code: ADDT

The Model D Art Diffusor® can be mounted directly to the wall or ceiling using construction adhesive and mechanical fasteners, or dropped into an existing T-bar ceiling grid.
2014 PUPN Deans List Gold Award
DIFFUSING / SCATTERING SOUND: Sound Diffusion Explained
  Package information: 4 units in one box
Length Width Height Weight
24 in. 24 in. 6 in. 25 lbs.
Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.

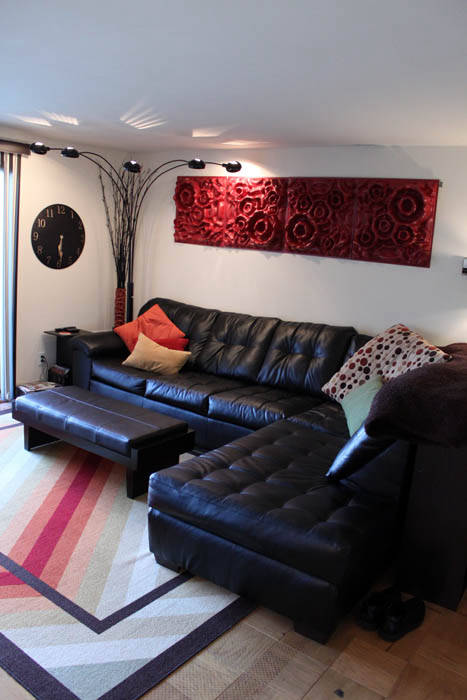

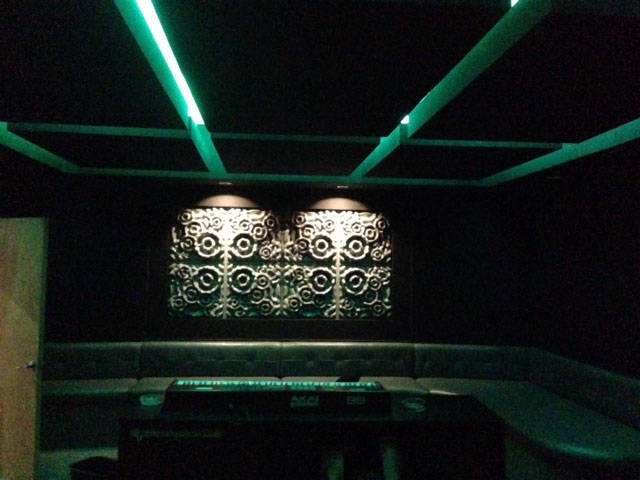

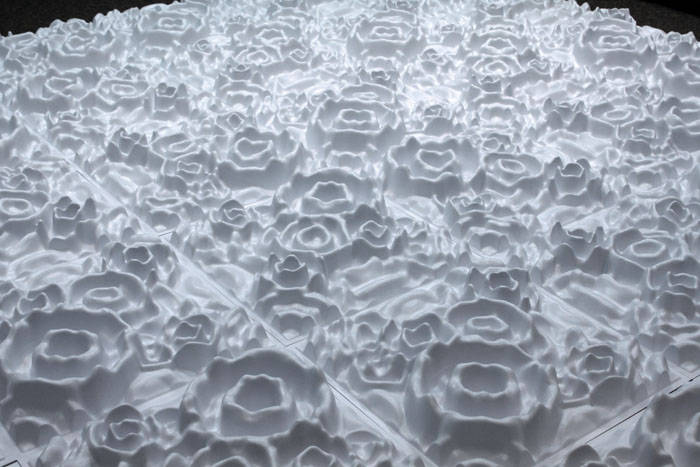

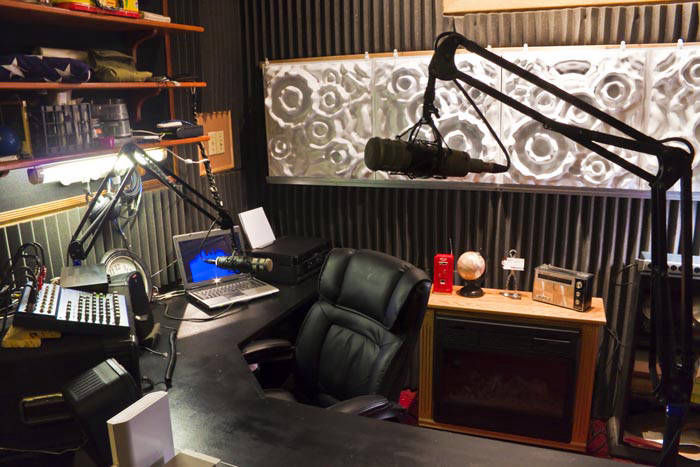

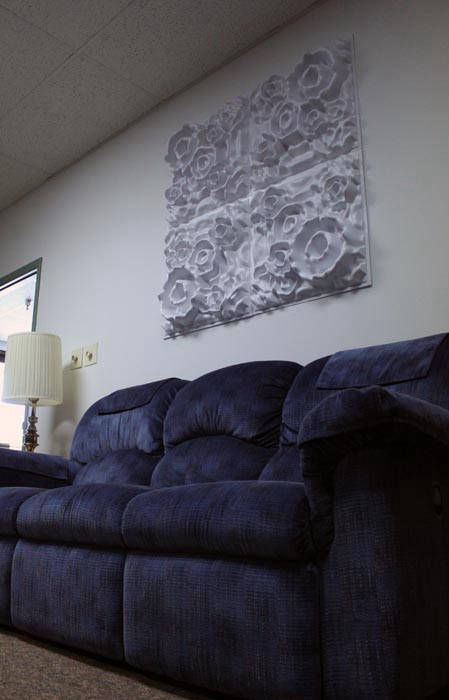

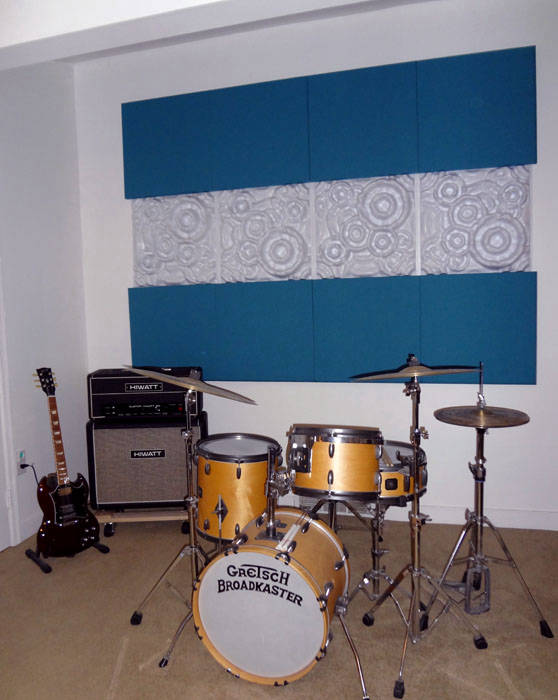

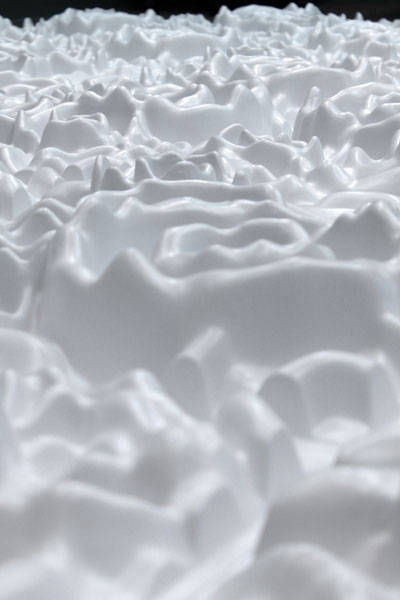

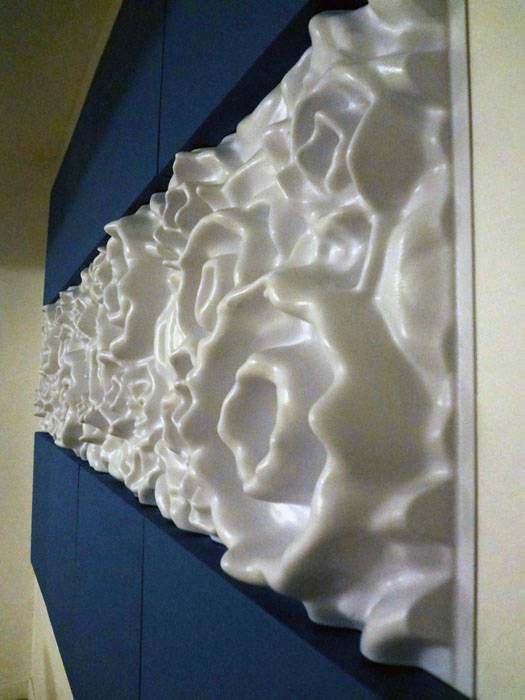

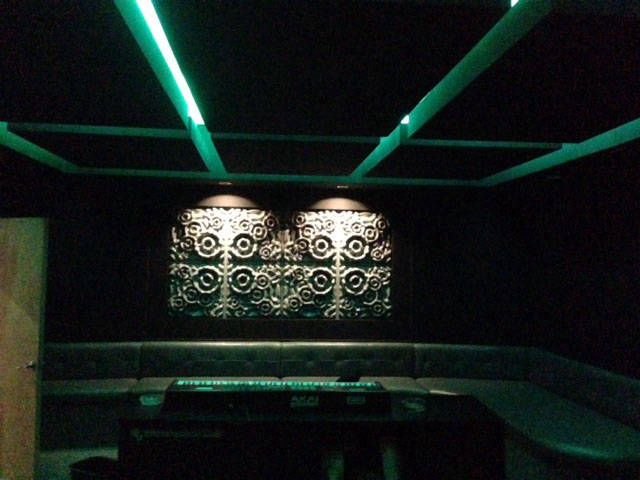

Click on a gallery image to enlarge:
