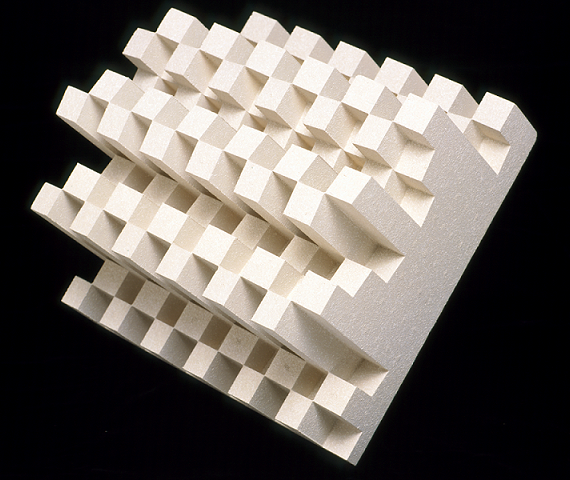

Art Diffusor® Model E - Sound Diffuser
US Patent #5160816

|

Model E:  2 Dimensional / 5 Octave Diffusor

Size:   15” x 15”
Depth:    9”          Weight: 1 pound
Mount:    Direct mount (wall or ceiling)
Material:   Expanded Polystyrene (EPS)
Bandwidth:   125 Hz to 16 kHz
Brochure:   Art Diffusors® Brochure (PDF)
Specs:   Art Diffusor® Model E Specifications (PDF)
    (Need Acrobat Reader?  Click here)

The Art Diffusor® Model E is a patented, two dimensional, five octave, binary array diffuser. The range of the Art Diffusor® is extended over other designs by its unique angled end caps to further control specular reflections above 4 kHz.  Improve sound clarity and increase the spatial response of the room acoustics.

This unit can be painted on site to match or complement an existing color scheme using standard or textured paints. The Model E is easily installed to a wall or ceiling using construction adhesive and mechanical fasteners.

Package information: 2 units in one box
Length Width Height Weight
16 in. 32 in. 20 in. 5 lbs.
Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.

Performance data in specification above.
