Art Diffusor® Sound Diffusers
US Patent #5160816

|
Two Dimensional diffusion in 3D™
The Art Diffusor® is a patented, two dimensional, binary array sound diffuser.  The range of the Art Diffusor® is extended over other designs by its unique angled end caps to further control specular reflections above 4kHz.  These diffusers reduce the intensity of sound by scattering it over an expanded area.  This prevents comb filtering and standing waves while maintaining the live intensity of the sound.  A diffusive room will sound larger and more open with improved sound clarity.
VIDEO: DIFFUSING / SCATTERING SOUND: Sound Diffusion Explained

ArtDiffusor Model D The New

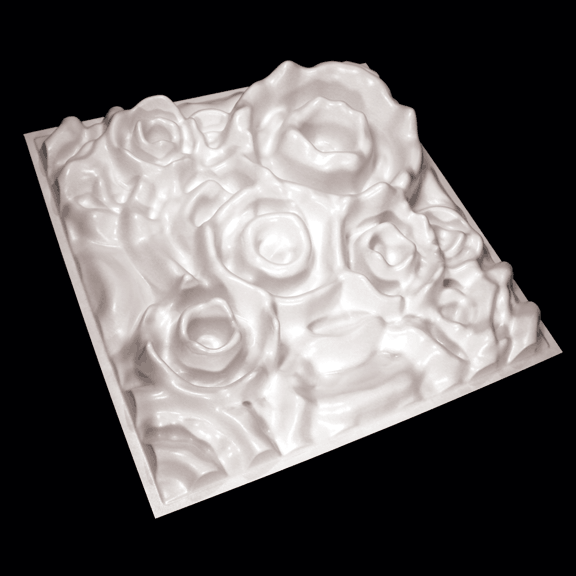

ArtDiffusor® Model D
Model D Wall Install
Organic Quadratic Diffuser

Size:
23-5/8" x 23-5/8"

Depth:
4.1"

See More >>

Model F:  Two-Dimensional Diffusor

Model F
Two-Dimensional
Low Profile
Art Diffusor

Size:
23-5/8" x 23-5/8"

Depth:
2"

Bandwidth:
1 kHz to 16 kHz

See More »

Model C:  Two-Dimensional / Four-Octave Diffusor

Model C
Two-Dimensional Four-Octave
Art Diffusor

Size:
23-5/8" x 23-5/8"

Depth:
4.5"

Bandwidth:
250 Hz to 16 kHz

See More »

Model W:  Two-Dimensional / Five-Octave Diffusor

Model W
Two-Dimensional Five-Octave
Art Diffusor

Size:
15" x 15"

Depth:
9.5"

Bandwidth:
125 Hz to 16 kHz

See More »

Model E:  Two-Dimensional / Five-Octave Diffusor

Model E
Two-Dimensional Five-Octave
Art Diffusor

Size:
15" x 15"

Depth:
9"

Bandwidth:
125 Hz to 16 kHz

See More »


For more information on the Art Diffusor series, click on the products above or download the following PDF booklet which contains product information and an explanation on diffusion.

Art Diffusors - Brochure, Specifications
& Installation
Guide
