Pyramidal Sound Diffusers

|

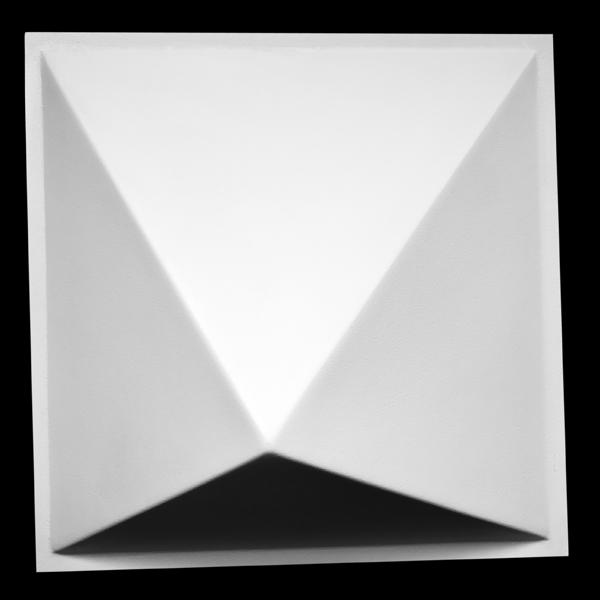

Pyramidal diffusers quickly and easily eliminate floor to ceiling standing waves.  They reduce flutter echo while maintaining a warm room sound. Molded in a one-piece pyramid shape, their offset apex provides four different angles of reflection.

The internal cavity of the Pyramidal Diffuser can be lined with a 1˝” thick layer of glass fiber batting to increase absorption and prevent resonance.

Nominal Sizes: 2’x2’, 2’x4’, 4’x4’

Depth: Varies

Material: Class A Thermoformed plastic (Components have been tested in accordance with ASTM E84 and determined to have a flame spread of 25 or less.)
Specs: Pyramidal Diffuser (std)- Specs.pdf
Pyramidal Diffuser (lined)- Specs.pdf
Pyramidal Diffuser (wrapped)- Specs.pdf
Pyramidal Diffuser (lined and wrapped)- Specs.pdf

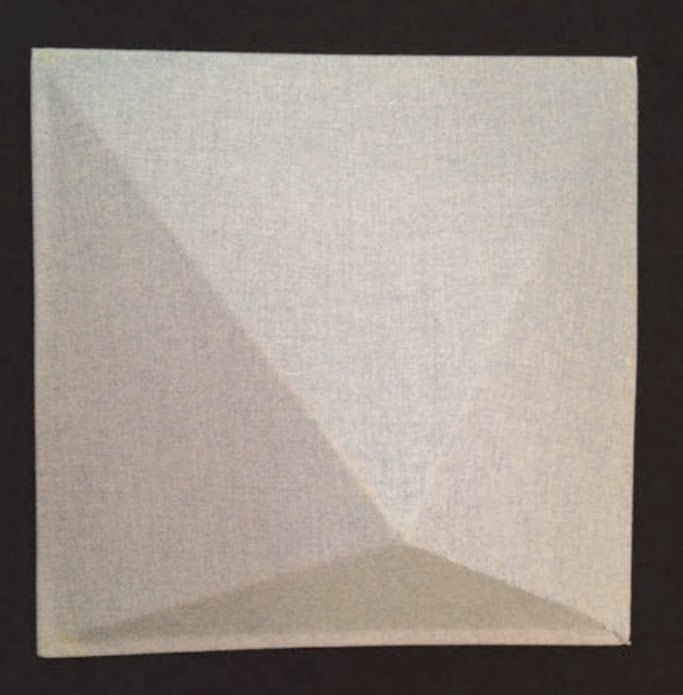

Click photo for larger view


Finish: White texture finish or fabric covered in Guilford of Maine®FR701® Style 2100 or other factory approved finish.

Mounting: L-Brackets for direct mount to wall or manufactured to fit into standard T-bar grids.
(Please specify mounting preference when ordering)

NRC: 0.10 (typical)


Actual Sizing: Take off 1/4" overall size for grid suspension and 1-1/8” off overall size for wall mount

Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.
