Double Duty Diffuser™ Barrel Shaped Diffuser

|

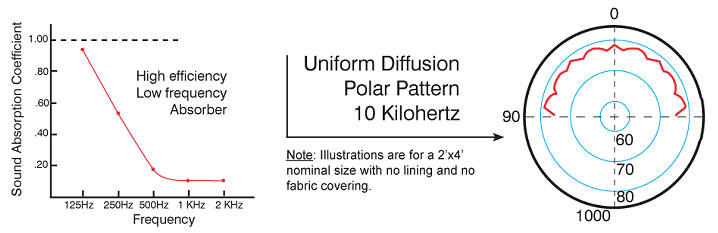

The polycylindrical (barrel shaped) diffuser will act to scatter high frequency sound and trap bass in any location. Bass absorption will vary with size. A 2’ x 4’ unit has maximum absorption at approximately 125 Hz.  Increasing size to 4’ x 8’ lowers center frequency of maximum absorption to 63 Hz. Mid to high frequency absorption is typically 0.10 to 0.25.

The Double Duty Diffuser™ is available in white thermoplastic, standard Guilford of Maine FR701 Style 2100 fabric or other factory approved finish. Units have the option to be lined with a 1-1/2” thick layer of glass fiber batting to increase absorption and prevent resonance. Lining is standard in larger sizes.

Diffusers are wall mounted using provided “L” brackets.  Configurations are available to fit a standard T-bar suspended ceiling grid.

Sizes:
(nominal)
2’x2’, 2’x4’, 3’x3’, 3’x4’, 3’x5’, 3’x6’, 4’x4’, 4’x6’, 4’x8’
(see chart below)
Depth: 7"
Material: Class A Thermoformed plastic (Components have been tested in accordance with ASTM E84 and determined to have a flame spread of 25 or less.)
Specs: Double Duty Diffuser (std)- Specs.pdf
Double Duty Diffuser (lined)- Specs.pdf
Double Duty Diffuser (wrapped)- Specs.pdf
Double Duty Diffuser (lined and wrapped)- Specs.pdf
Mount: L-Brackets for direct mount to wall or manufactured to fit into standard T-bar grids.
(Please specify mounting preference when ordering)
Fire Rating: Class 1 (A)
NRC: 0.10 (typical)

Finish: White texture finish or fabric covered in Guilford of Maine FR701 2100 or other factory approved finish.

Click photo for larger view

White Thermoplastic

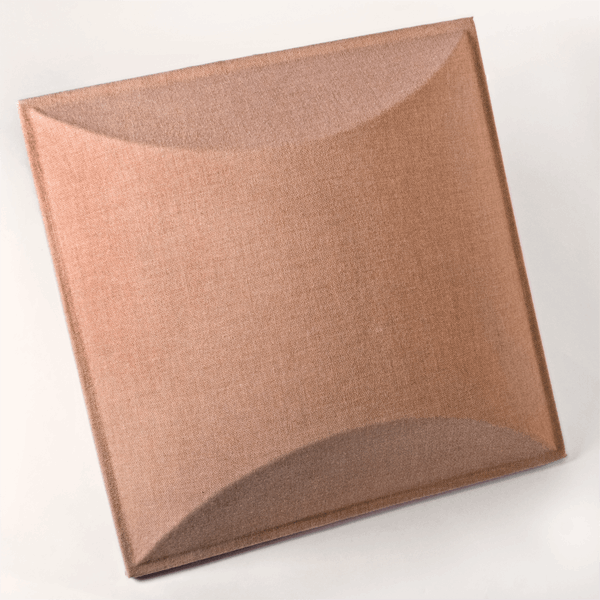

Fabric Covered


Request a Quotation

Click For Price
(Provide sizes and quantities required.  Indicate if fabric facing or fiberglass lining is required.)

Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.

Take off 1/4" overall size for grid suspension and 1-1/8” off overall size for wall mount or see sizing table below.




Nominal Size Wall Mount Dimensions Lay in Ceiling Dimensions
2'x2' 22-7/8" x 22-7/8" 23-3/4" x 23-3/4"
2'x4' 22-7/8" x 46-7/8" 23-3/4" x 47-3/4"
4'x4' 46-7/8" x 46-7/8" 47-3/4" x 47-3/4"
3'x3' 34-7/8" x 34-7/8"
3'x4' 46-7/8" x 34-7/8"
3'x5' 34-7/8" x 58-7/8"
3'x6' 34-7/8 x 70-7/8"
4'x6'  46-7/8" x 70-7/8"
4'x8' 46-7/8" x 94-7/8"


Barrel Diffusers are available lined with a fiberglass batt.
Diffusers are faceted on the short dimension unless otherwise specified
