Geometrix™ Bass Trap / Broadband Absorber

|

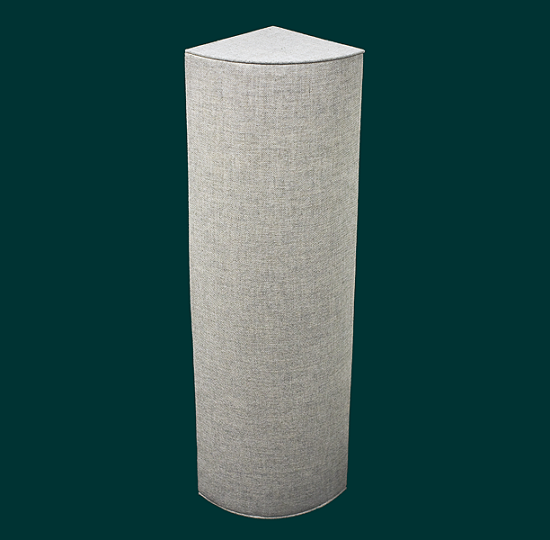

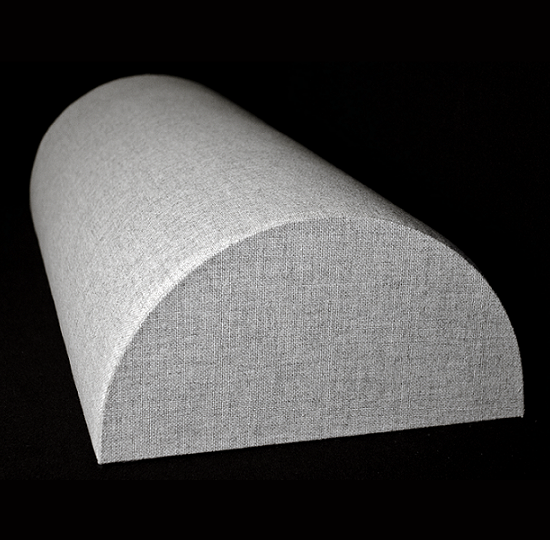

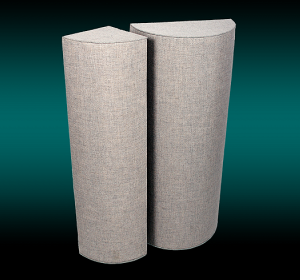

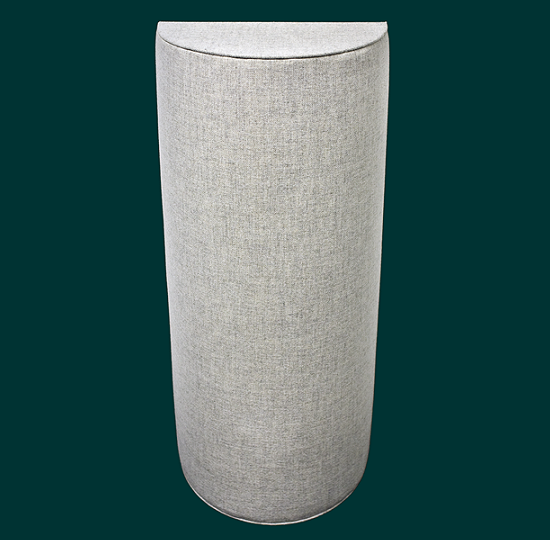

The Geometrix Broadband Bass Trap is a sculptured sound absorbing panel used for wall, corner and ceiling applications.  Available in half-rounds or quarter-rounds.  This unit can be installed vertically or horizontally to create dynamic installations.

The Geometrix is constructed of 1” thick, 6-7 PCF glass fiber core with a 1 PCF fiber blanket that's ¼” thick.  The inner structure of the Geometrix is comprised of ¾” thick, industrial grade particleboard half rounds or quarter rounds spaced every 24” o.c.  The top and bottom of the units are faced with hardboard.  The back of the Geometrix is ¼” hardboard.

The Geometrix is wrapped on the exposed face, top and bottom with a Guilford of Maine FR701 2100 Series woven polyester fabric.   Z-clips or adhesive are recommended mounting methods.

Geometrix demonstrates outstanding performance in all sound frequency ranges.  Tests measure 0.84 Absorption at 125 Hz!

Click photo for larger view:


Please Contact Acoustics First for any quantity pricing or a quotation for materials and shipping. Minimums may apply.
     Click photo for larger view:

     Technical Information

Sizes: Half Round:  16" Diameter (only) Quarter Round:  8" Radius (only)

Lengths: Standard lengths of 48"(4') and 96"(8').
Custom lengths are available; please contact us.

Fire Rating:  Class A

Available Colors:  Guilford of Maine FR701 2100 Series


Sound Absorption Coefficients
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz NRC
0.84 1.26 1.28 1.25 1.26 1.17 1.25
Related Items
Acoustical Ceiling Clouds Fabric Covered Ceiling Tiles Hanging Ceiling Baffles Fabric Wrapped Acoustical Panels
Sonora® Ceiling Clouds Sonora® Ceiling Tiles Sonora® Ceiling Baffles Sonora® Wall Panels

»  See more Fabric Wrapped Absorbers including ceiling clouds, ceiling tiles, baffles and corner traps.
»  View a video on How Acoustical Panels Improve Sound
»
  A full line of diffusion products are also available.
