Cutting Wedge® Classic Acoustic Foam Panels

|

CUTTING WEDGE® CLASSIC can be installed to create seamless absorptive walls, and enhance imaging by reducing unwanted reflections in broadcast and recording studios or other critical listening environments.

  • Prevent destructive specular reflections from distorting or coloring the sweet spot.

  • Eliminate room modes, comb filtering, standing waves and undesirable specular artifacts.

  • Attenuate sound pressure buildup at room boundaries (where walls meet walls).

Cutting Wedge® Material Components:

  • Open Cell Polyurethane Foam:
    Density:  2 pound cubic foot

  • Flammability:  Meets UL94HF-1

  • Flame Spread = 95

  • Smoke Density = 340

  • Tensile Strength = 20 PSI

  • Can be installed using a construction adhesive
    that is approved for foam.

Cutting Wedge® Classic is Available In:

Sizes:
2", 3", 4" thicknesses.

Available in 1'x1' and 2'x4' Sheets.

Cutting Wedge® Classic

Click photo for larger view:

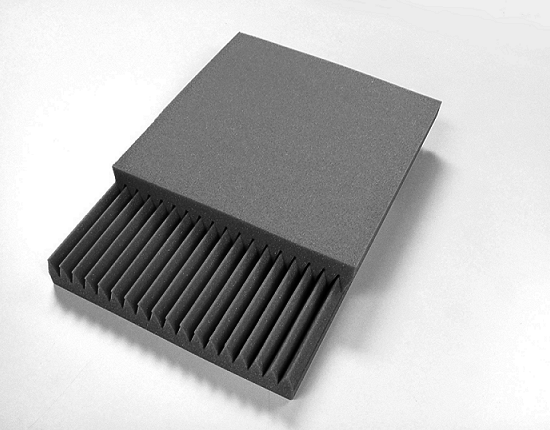

Cutting Wedge Classic - 1'x1'
Cutting Wedge® Classic - 1'x1'
Cutting Wedge Classic - 2'x4'
Cutting Wedge® Classic - 2'x4'


-Materials are also sold per piece.  Please request a quotation for your specific requirements. Minimums may apply.
(Charcoal is the default color unless otherwise specified.)

Please
Contact Acoustics First for any quantity pricing or a quotation for materials and shipping.

Cutting Wedge Classic Sound Absorption Coefficients
Thickness 250 Hz 500 Hz 1000 Hz 2000 Hz NRC
2" 0.31 0.69 0.94 0.95 0.70
3" 0.58 0.67 0.91 0.96 0.80
4" 0.90 0.84 0.99 0.98 0.95
6" 1.12 0.88 1.05 1.06 1.05

Available Colors: (Note that colors will vary from representation below according to your monitor settings):

Charcoal Brown Beige Blue

Click on any photo for larger view:

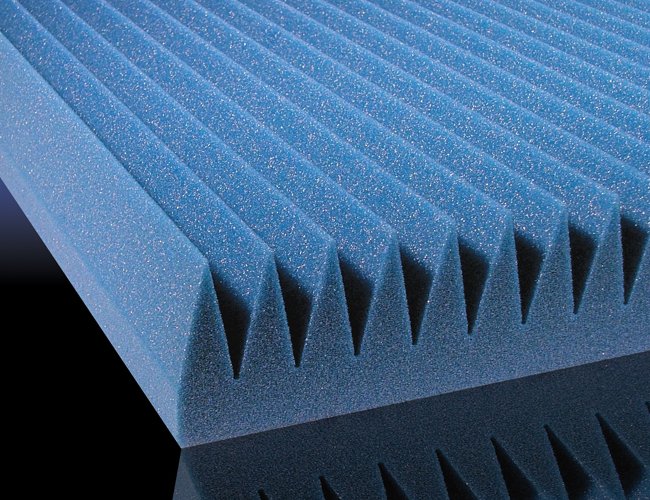

2" Cutting Wedge® Classic - 1 x 1 3" Cutting Wedge® Classic - 2 x 4 4" Cutting Wedge® Classic 2 x 4

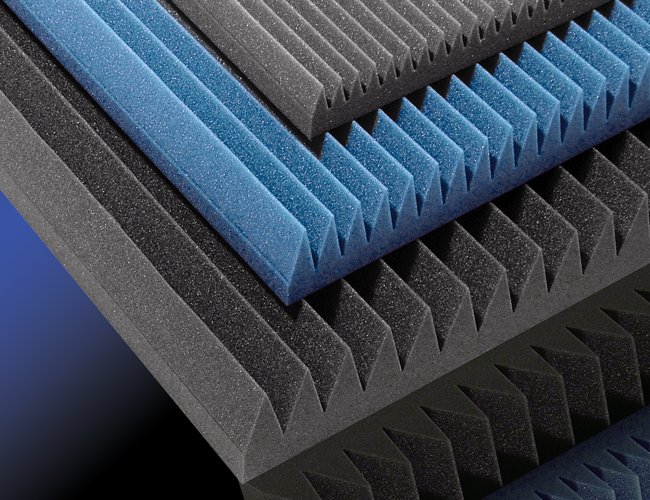

Cutting Wedge® Classic - 2 x 4 Cutting Wedge® Classic - Group
