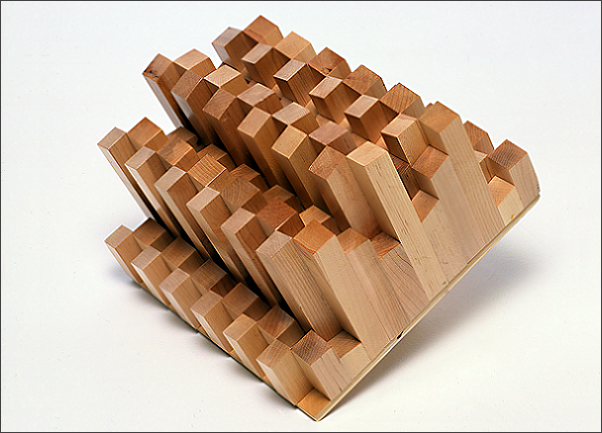

Art Diffusor® Model W

|

Model W:  2 Dimensional / 5 Octave Diffusor

Size:   15” x 15”
Depth:    9½”          Weight: 25 pounds
Mount:    Wall
Material:   Natural Wood with Clear Finish
(Typical woods: Poplar, Maple, Ash,
Red Oak, Cherry, or Walnut)
Bandwidth:   125 Hz to 16 kHz
Brochure:   Art Diffusors® Brochure (PDF)
Specs:   Art Diffusor® Model W Specifications (PDF)
    (Need Acrobat Reader?  Click here)

The Art Diffusor® Model W is a patented, two dimensional, five octave, binary array diffuser. The range of the Art Diffusor® is extended over other designs by its unique angled end caps to further control specular reflections above 4 kHz. Improve sound clarity and increase the spatial response of the room acoustics.

The Model W Art Diffusor® is a custom, hand crafted diffuser made from furniture grade wood. These units can be installed to create an  array of acoustical diffusion that is both elegant and effective. The deep cavities and wells of both the Model W and Model E provide for a broader sound diffusion bandwidth.



Product Code: ADW



Request a Quotation


*When requesting a quotation, please provide wood selection and quantities required for your project.  Pricing is based on current labor and material cost.

DIFFUSING / SCATTERING SOUND: Sound Diffusion Explained


Size

Code

Depth

Typical Wood Types

15” x 15”

ADW

9.5”

Poplar, Maple, Red Oak, Mahogany, Cherry, Walnut, Others

Pricing varies based on current market value of wood and labor.  A quotation can be provided based on the specific wood type and quantities your project requires. Custom manufactured from natural organic material.  Color and wood grain fluctuate and are distinct to each order.

Please Contact Acoustics First for a quotation for materials and shipping.



Click photos for larger view: (Note that colors will vary according to your monitor settings.)

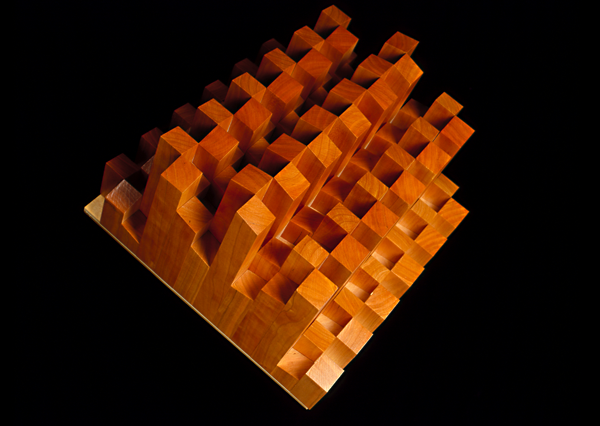

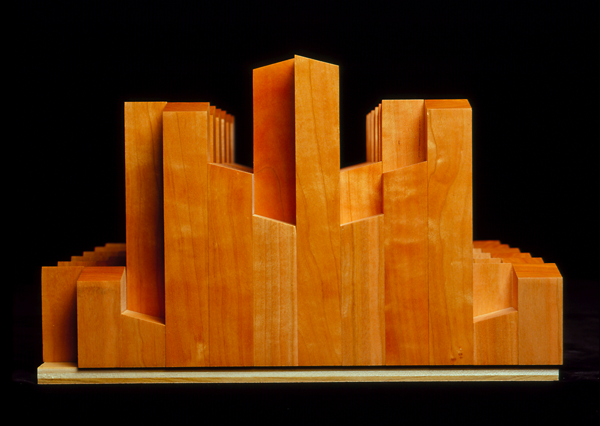

Cherry

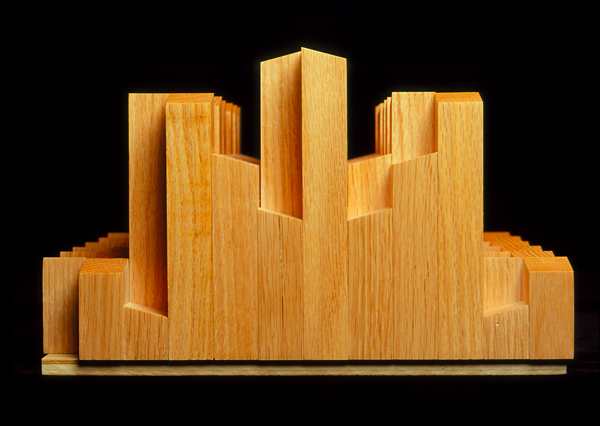

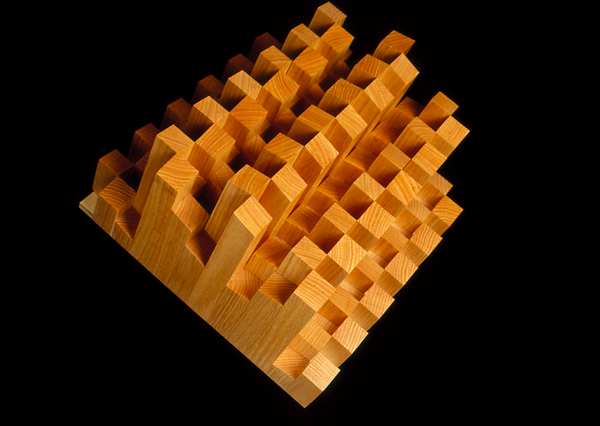

Oak

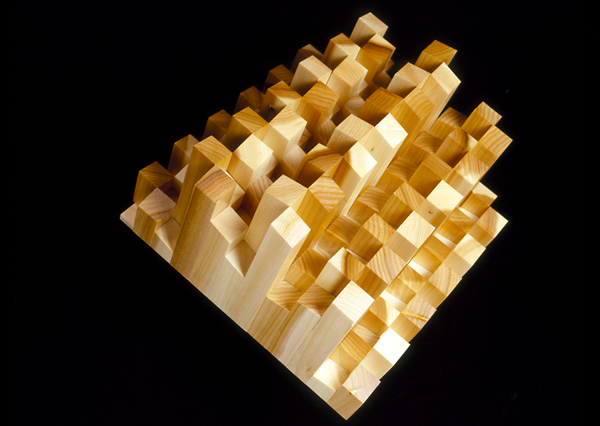

Poplar

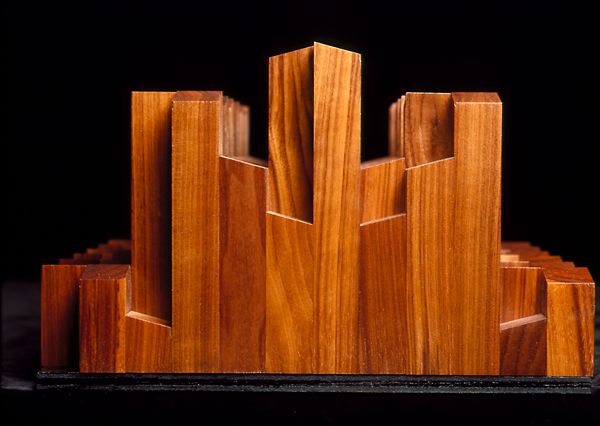

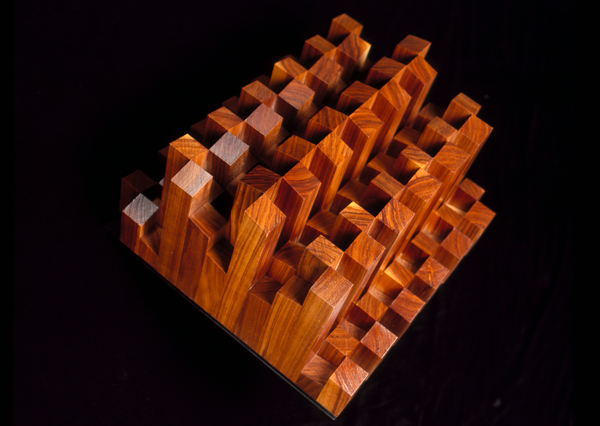

Walnut


Performance Data in Specification Above
