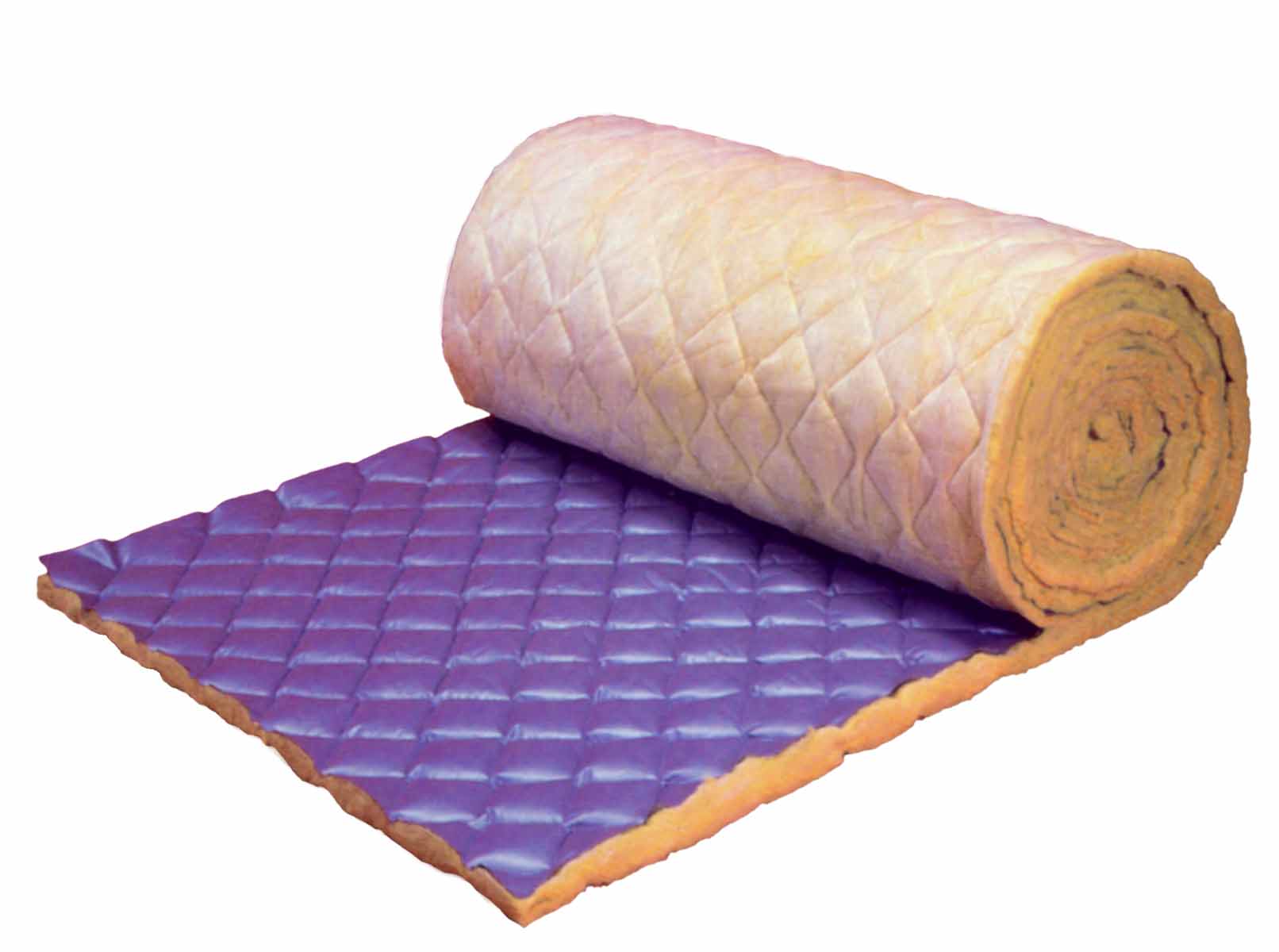

StratiQuilt™ Fiberglass Rolls

|
StratiQuilt™ Fiberglass Rolls are used to improve speech intelligibility. The quilted fiberglass material is available in various layered configurations. One combines BlockAid® noise barrier performance and efficient sound absorption. Single or double faced material can be used to field fabricate sound proof enclosures, to add sound absorption around noisy machinery or used as an effective material for wrapping pipe, ductwork and noisy HVAC systems. Installation accessories such as grommets, grommet tool kit, edge stapler and binding tape are available.



Bulk Roll Price
This lightweight, semi-flexible, easy-to-handle material is a vinyl coated, grey colored fiberglass facing cloth, quilted to a supporting 2 lb./cu. ft. density fiberglass. This durable vinyl-coated fiberglass facing resists oils, grease, moisture, mild acids and alkalis, dirt, dust and salt atmospheres. Facing can be steam cleaned or washed with common industrial cleaners.

StratiQuilt fiberglass materials are quilted in a 4" diamond shape, and are fully bound on all edges. No fiberglass is exposed. All panels have standard brass grommets 12" O.C. on top hanging side. Other custom configurations are available including straight stitch and black facing or silicone coverings.

Quilted Fiberglass Rolls are available in the following configurations:

SQ122 (Facing on one side) 48” wide, 50 ft. long. Unbound Edges

SQ124 (Facing both sides) 48” wide, 25 ft. long. Bound Edges

SQ125 (Facing both sides with 1.0 lb sq. ft. BlockAid® Septum) 48” wide, 25 ft. long. Bound Edges

Part # Weight
Per Square Foot
Thickness
(Nominal)
Blanket Configuration STC NRC
SQ122 0.25# 1" Facing - One Side
N/A 0.65
SQ124 0.50# 2" Facing:  Both Sides
19 0.70
SQ125 1.50# 2" Facing:  Both Sides with 1# Square Foot Septum
29 0.65
